FEATURE & ADVANTAGE
• Advanced aerodynamic design;
• Big inlet size allowing massive air flow;

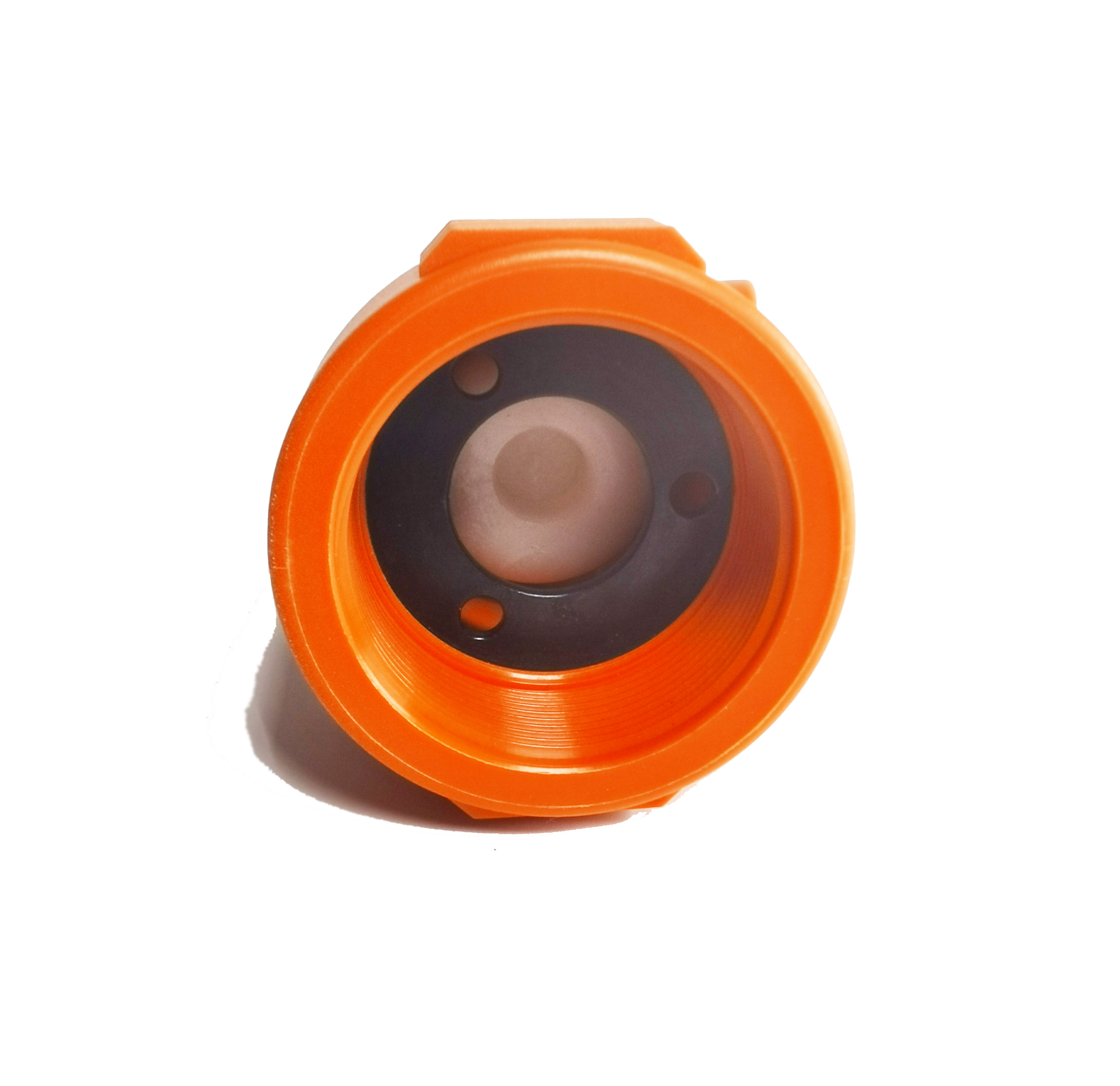

• One- piece floating ball design ensure ontime shutting of outlet while the high speed airflow occurs;
• Quality sealing - prevents leakage under low pressure conditions (0.1 bar/1.5 psi);
• PP material with corrosion, acid, alkliane resistant features to be long lasting;
• Multi-installation size for various market demands.
HOW IT WORKS
System filling - During filling water into the pipeline, massie air will be evacuate from kinetic air intake & exhaust hole. The
floating ball moves upwards to close the orifice after water flows into the champer. With aerodynamic design and the anti-blow design, the floating ball ensure ontime shutting of outlet while the high speed airflow occurs.
Pressurized Operation - The kinetic valves keeps closed under pressure from water.
System draining - When the system or pipe is drained empty, negative pressure forms in the kinetic valve. Meanwhile the float move down to take in air against vacuum formation.
